Maztech X4-LRF-15K: Hands-On With a 15km Laser Rangefinder

From a subsonic .510 Whisper at 600 metres to ELR rifles reaching beyond 4,000 yards, knowing the exact distance to target matters. Enter the Maztech X4-LRF-15K, a 15km laser rangefinder for extreme long-range shooting in a portable unit about the size of a pack of smokes.

I recently had the opportunity to spend some time with the Maztech X4-LRF-15K while shooting in the United States at the KO2M Global Finals in Raton, New Mexico.

It is an unusual piece of equipment: a compact laser rangefinder with a stated maximum ranging capability of 15,000 metres, integrated Applied Ballistics and a form factor that allows it to become part of a serious observation setup.

What interested me wasn’t simply the 15 km number. It was how something like this fits into the kind of shooting we actually do. I was also struck by how fast the Maztech X4-LRF-15K returned a distance at 4,000-plus yards: the reading was effectively instant, and the unit vibrated to confirm it had a distance on screen together with a ballistic solution.

I didn’t have time to work through the ballistics and every other feature, but I wanted to try the ranging capability on anything I could find, and it didn’t let me down. At around $5,000, this thing is impressive, especially considering that until relatively recently only much bulkier LRF systems could reach these kinds of distances. For comparison, we have also field-tested the Vortex Razor HD 4000 laser rangefinder at extreme-long-range distances.

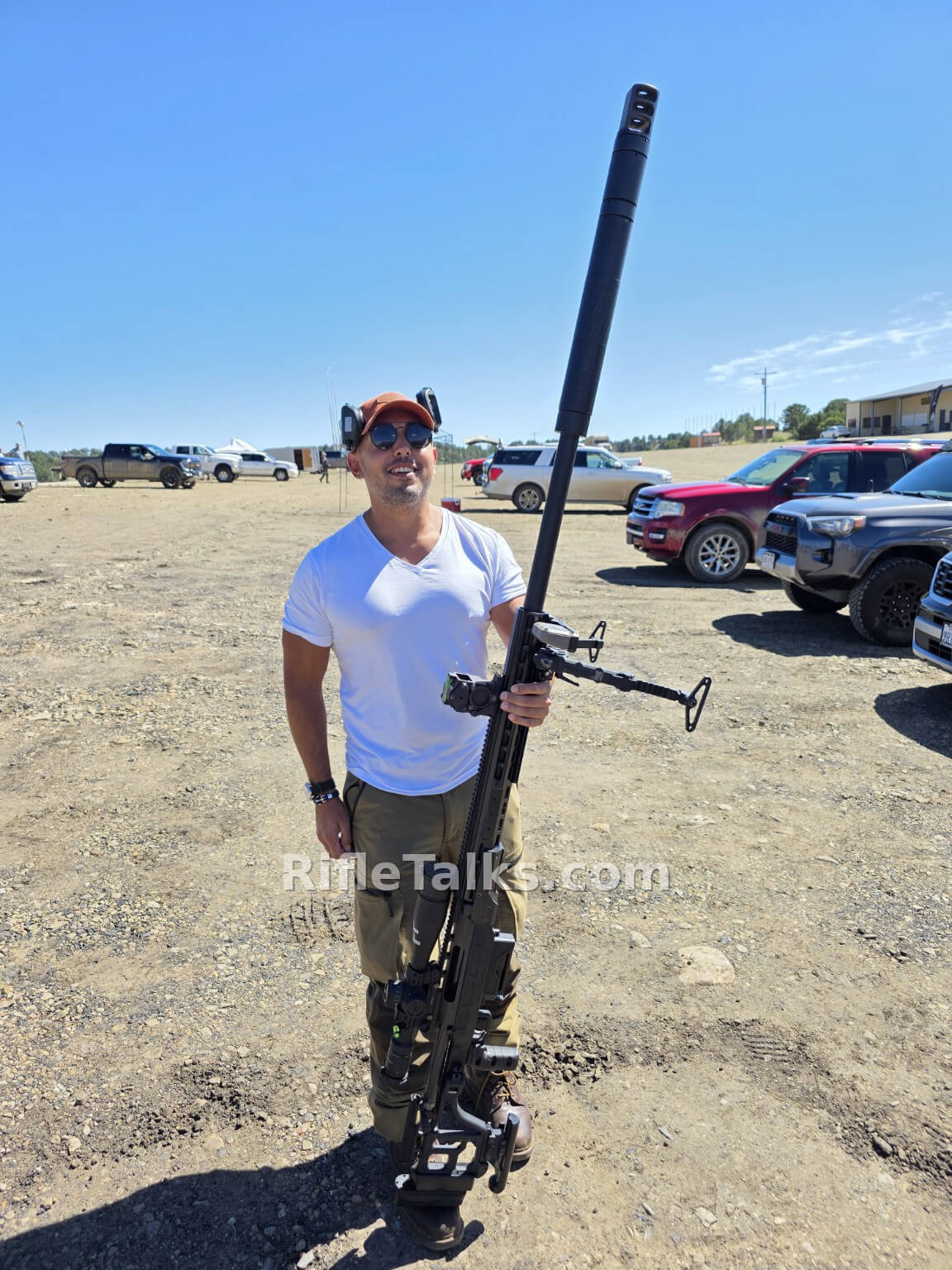

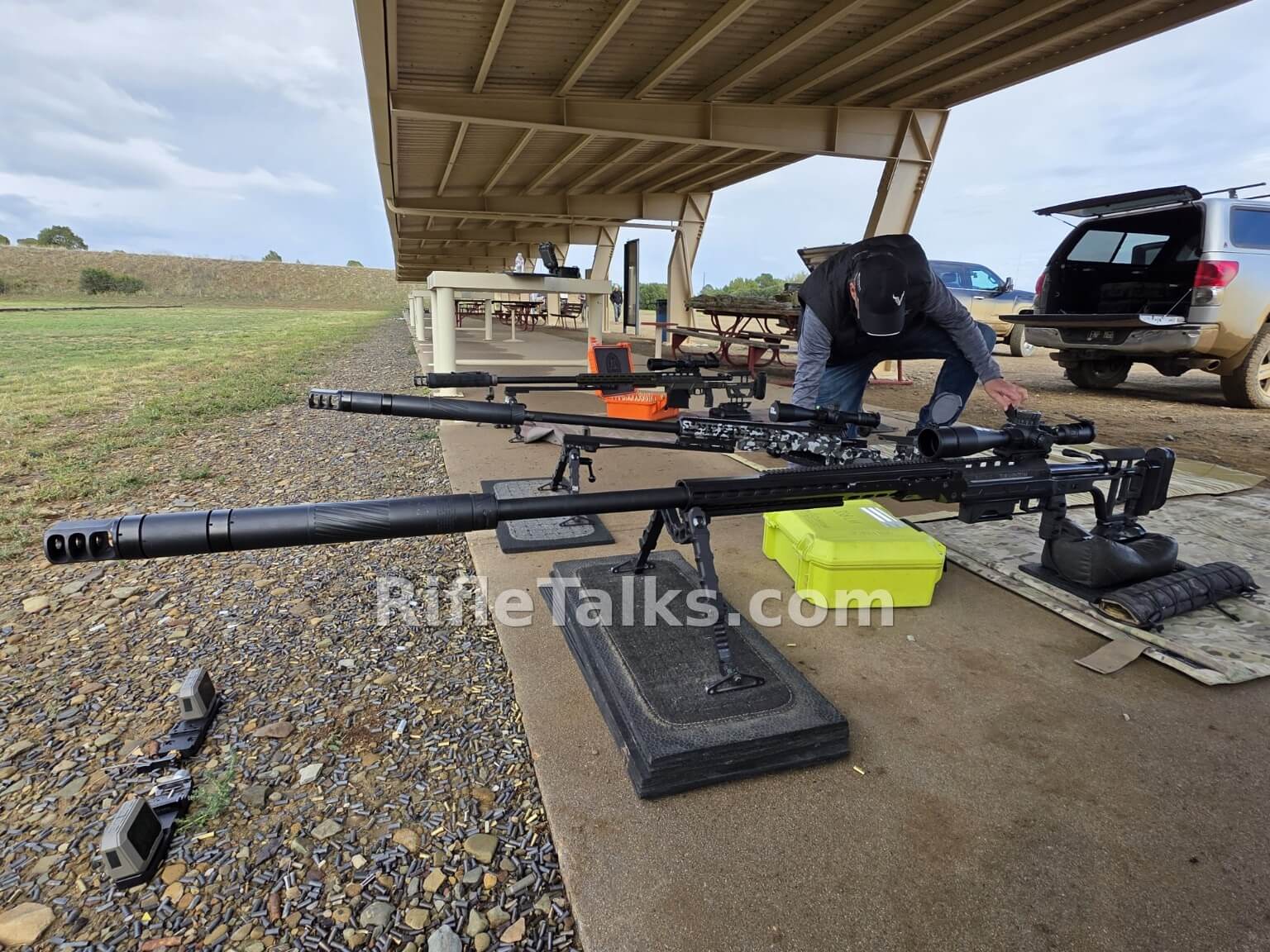

This is Rob Goehring’s Victrix 416 Stroker, which he calls the 416 Anchovy after making his own changes to the cartridge.

During this trip I was around rifles covering two completely different ends of the long-range spectrum: a subsonic .510 Whisper, where an error in range becomes critical because of the extreme trajectory, and .416/.50-calibre ELR rifles capable of reaching beyond 4,000 yards. In both cases, accurate distance is fundamental — ideally accurate to the metre. When you put so much time and effort into building the perfect ELR rifle, getting the distance wrong is unforgivable.

A special thanks to Rob Goehring seen below, who allowed us to use his impressive Maztech X4-LRF-15K and Hensoldt Spotter 60 setup and also gave us the opportunity to experience his .510 Whisper rifle and his 416 Stroker derivative.

Thanks also to James Blaine Archer who was incredibly helpful throughout my time there and helped us immensely whenever we needed something, and to Brian Cattaneo, who helped put my US trip together and made many of these experiences possible. Top notch fellas, hats off.

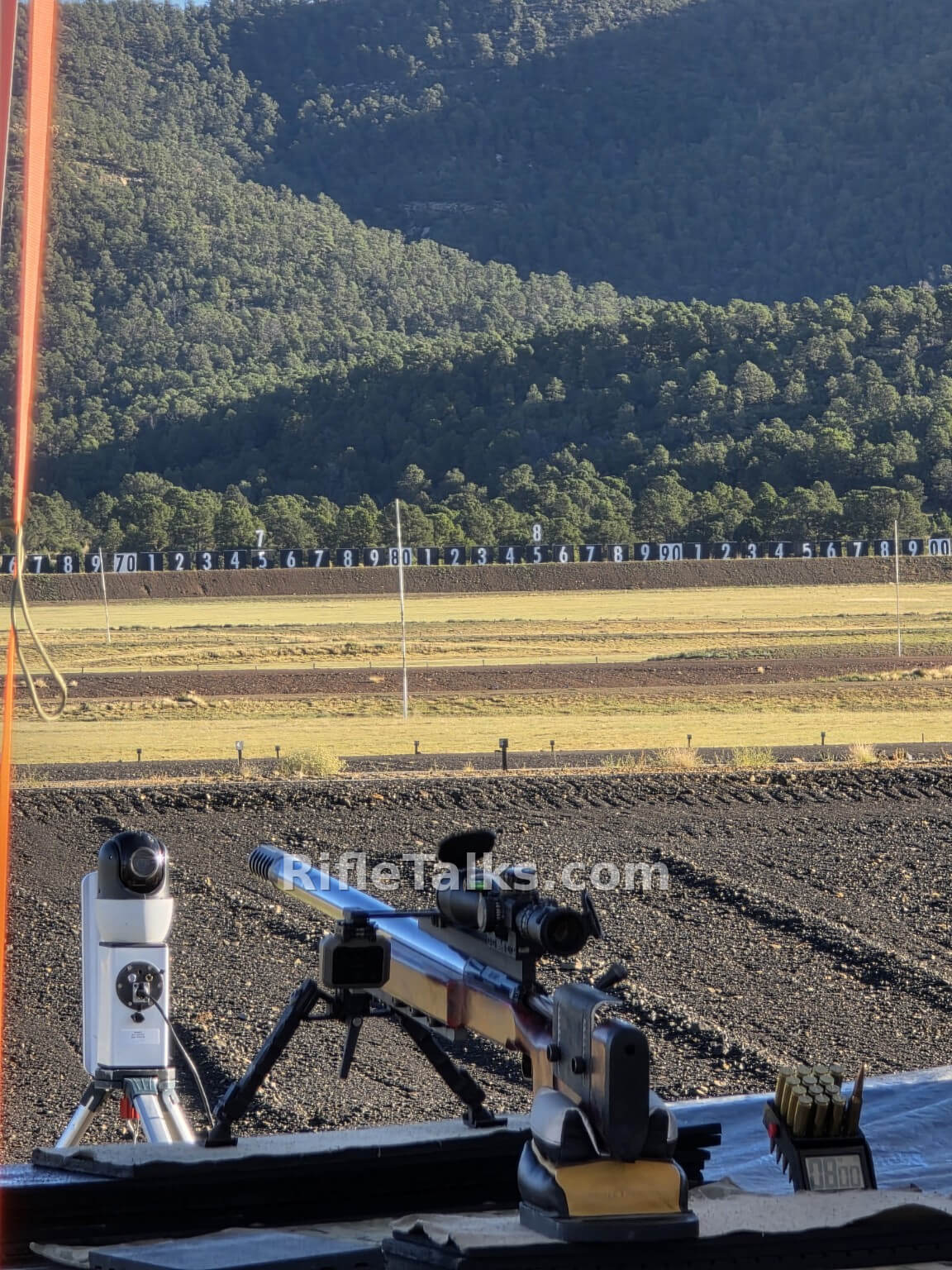

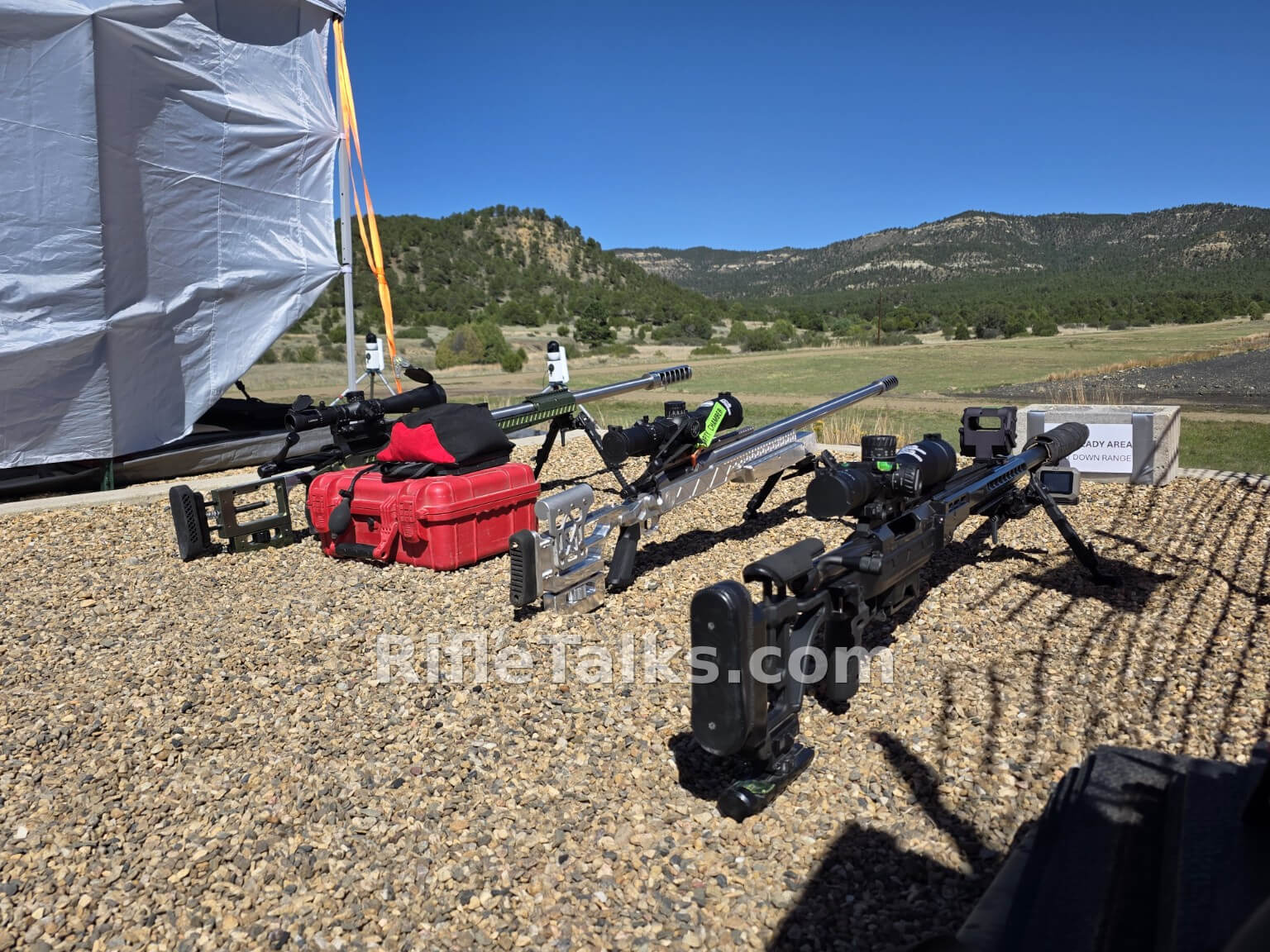

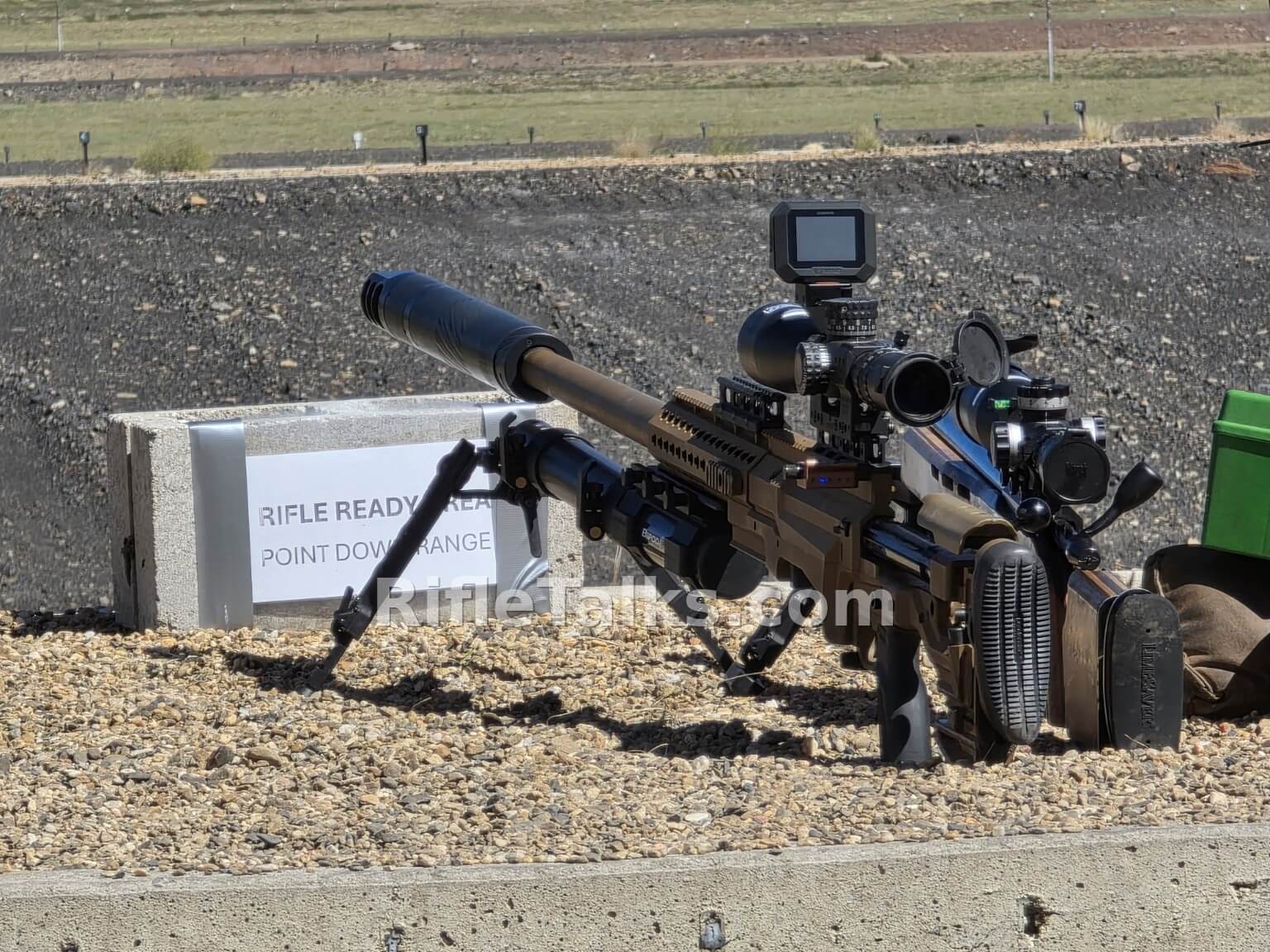

Below, this is the rifle I ran for KO2M Heavy, a Victrix .375 CheyTac with an Elite Iron suppressor. For more on the cartridge in ELR competition, see our .375 CheyTac ELR feature with Harry Drescher.

Maztech X4-LRF-15K: 15km ELR rangefinder

The X4-LRF-15K is designed for serious long-range observation and shooting applications. Maztech specifies a maximum ranging capability of 15,000 metres / 16,400 yards, with integrated Applied Ballistics and onboard environmental and motion sensing.

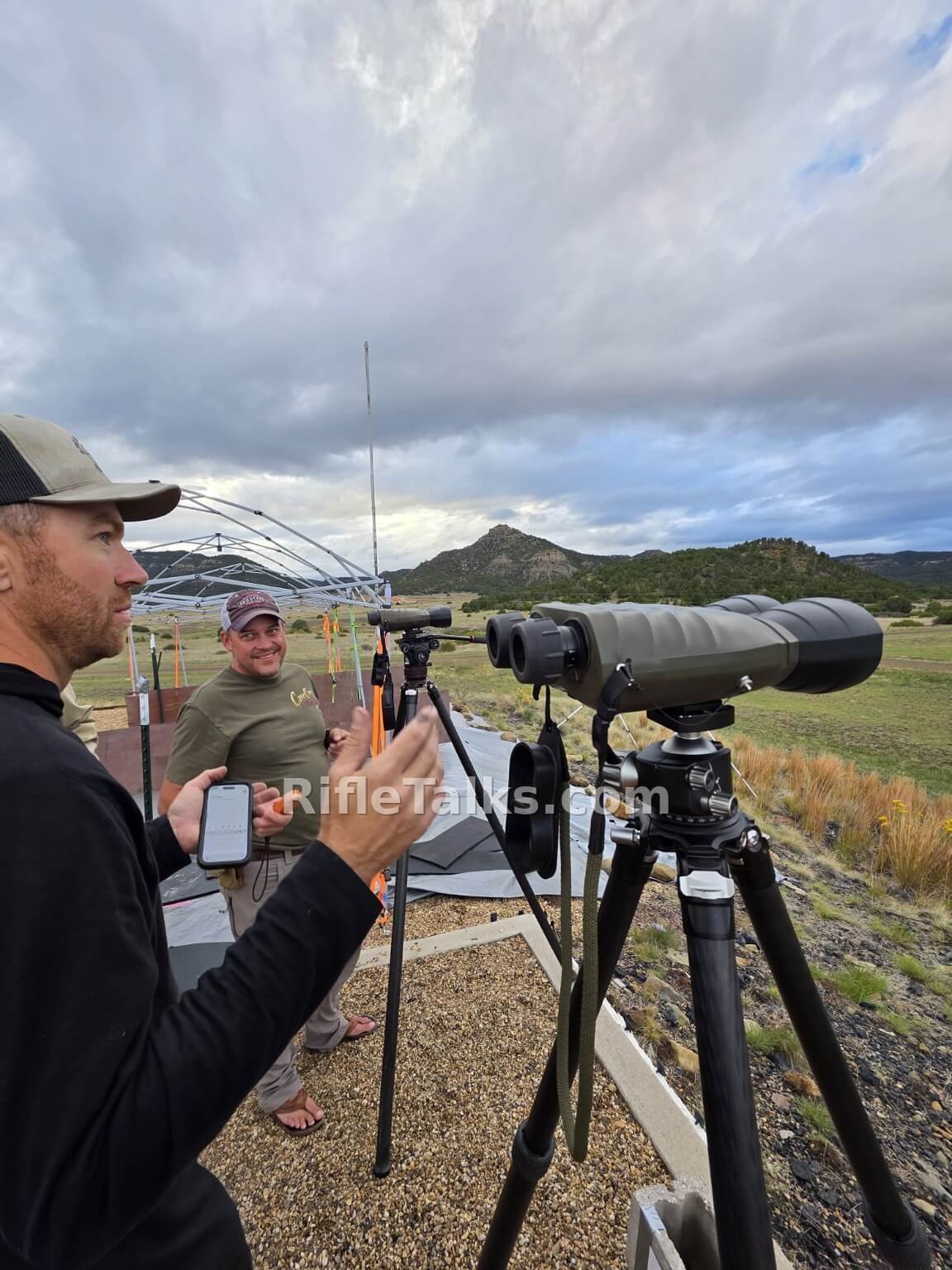

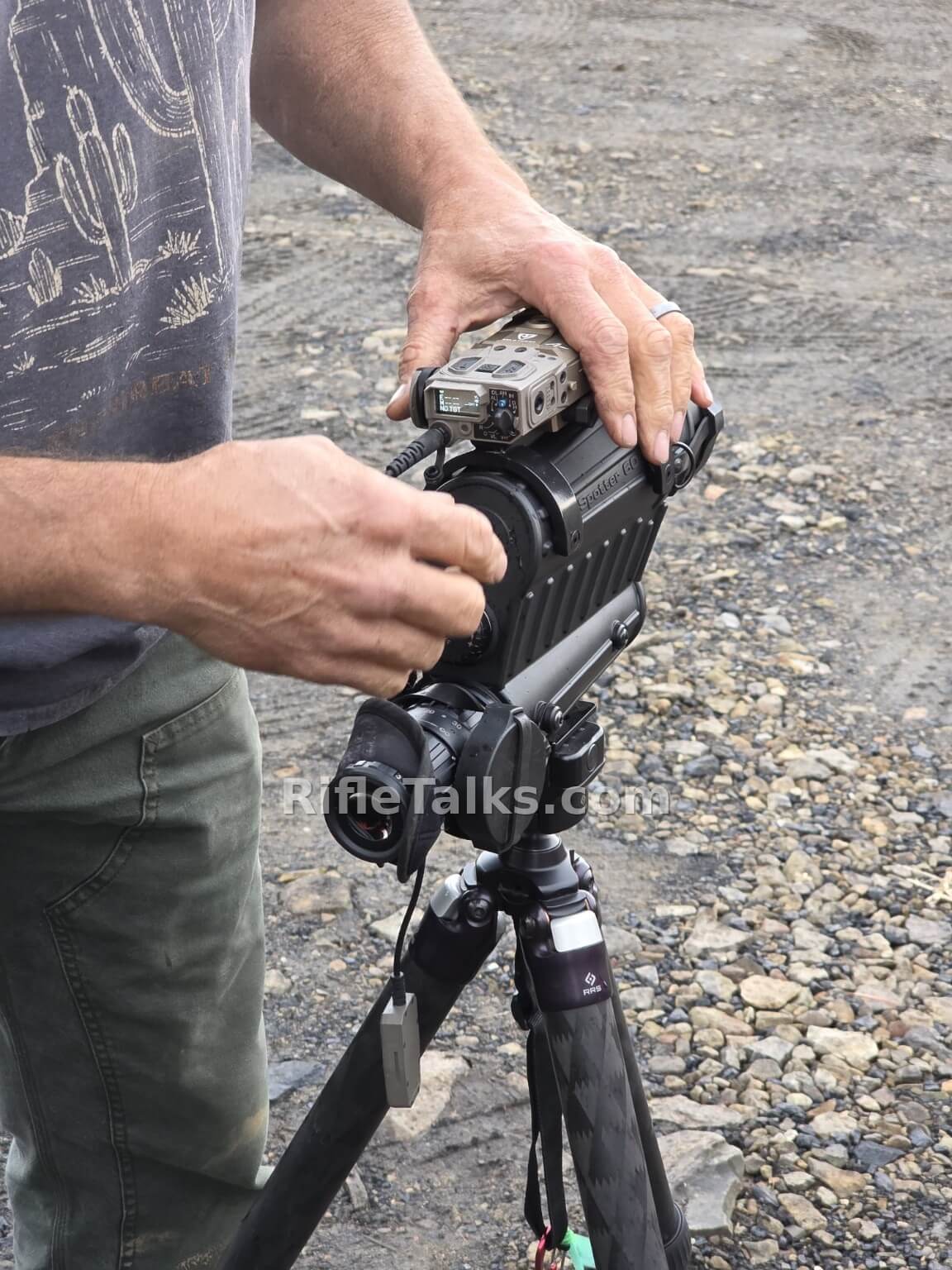

James Blaine Archer and Danny Gilbert here working the target distances before the Ko2M match.

---

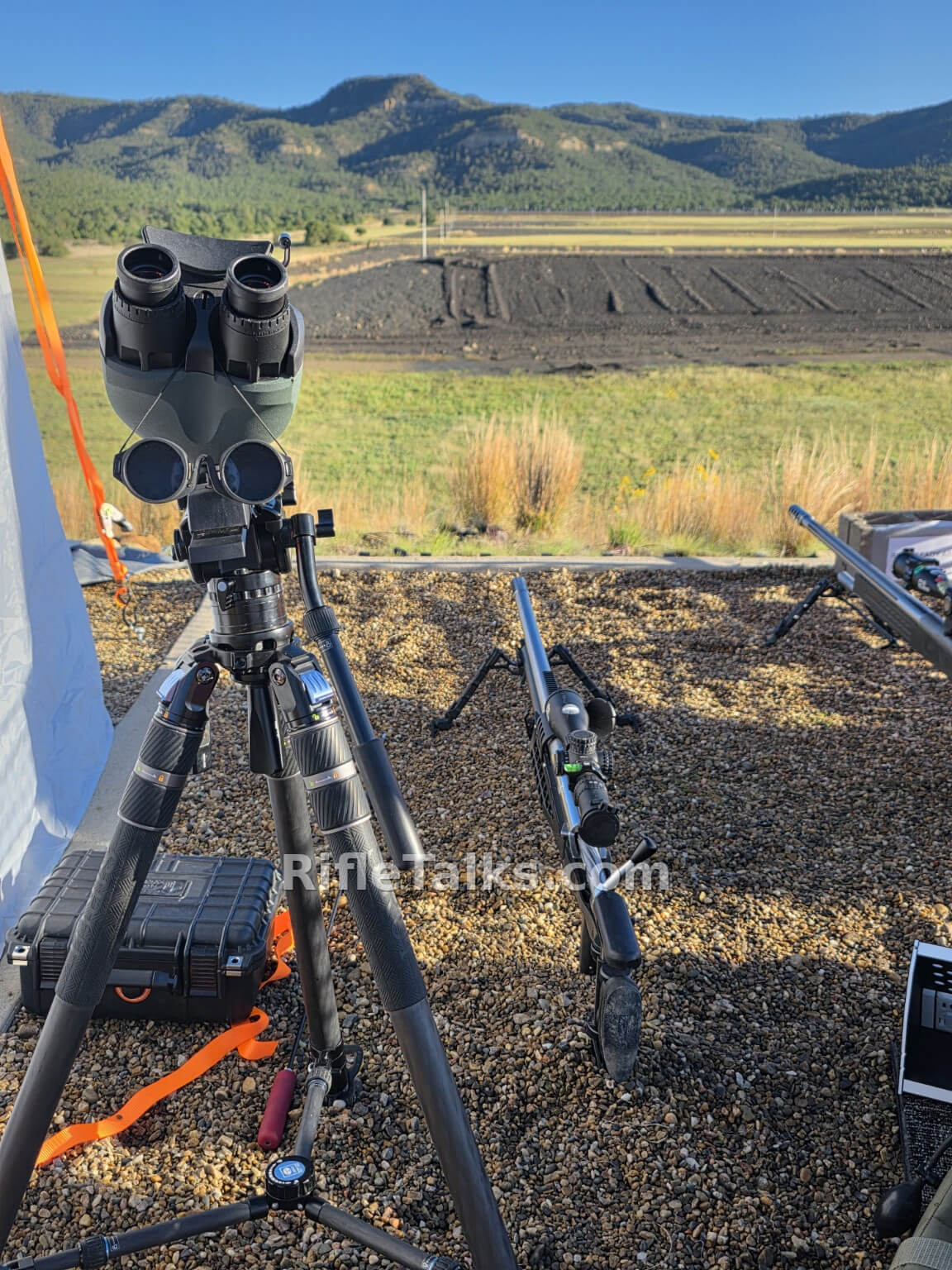

Vectronix Vector 21, the old gold standard in ELR rangefinding.

Maztech X4-LRF-15K field test at 3,143 metres

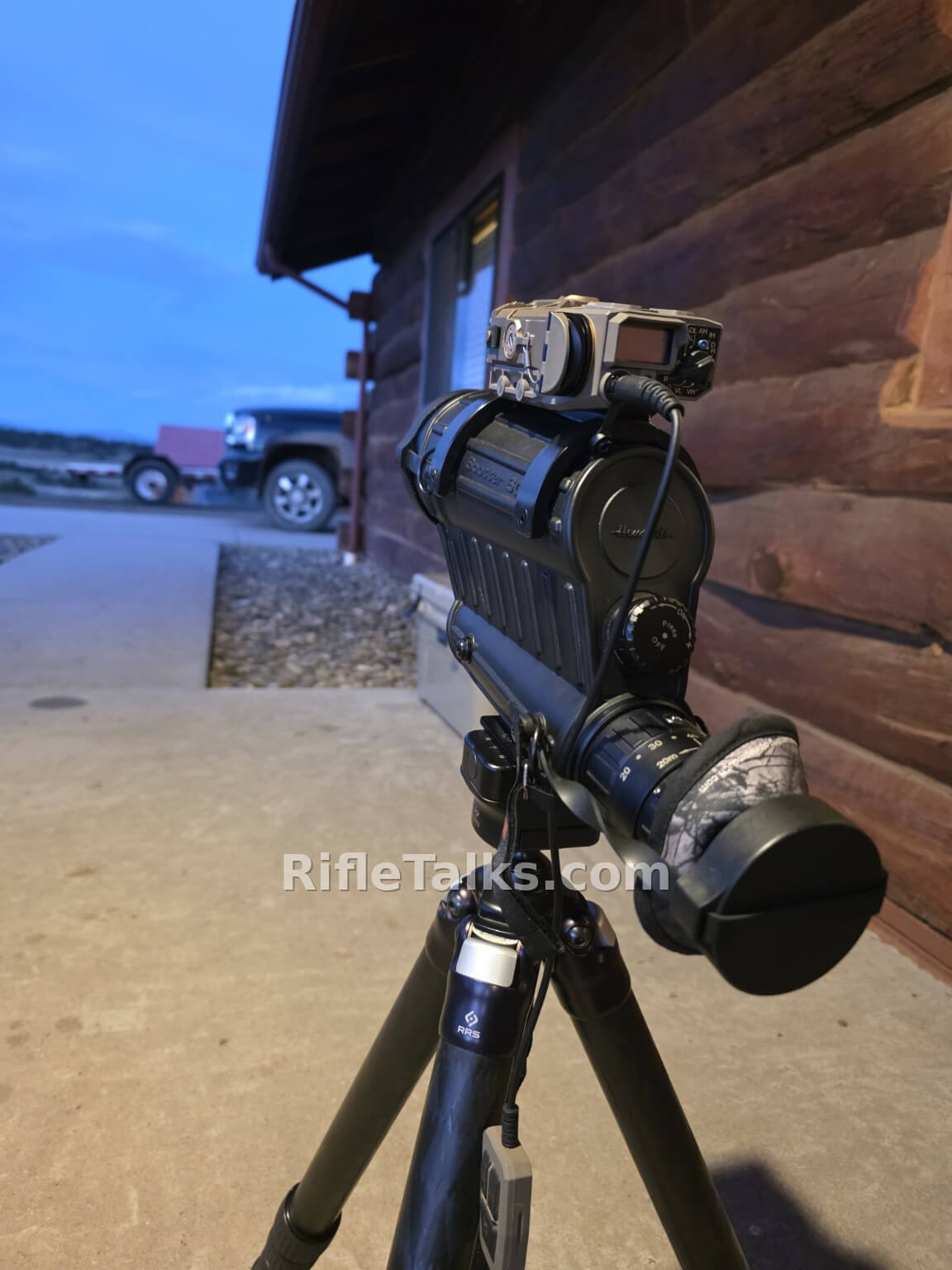

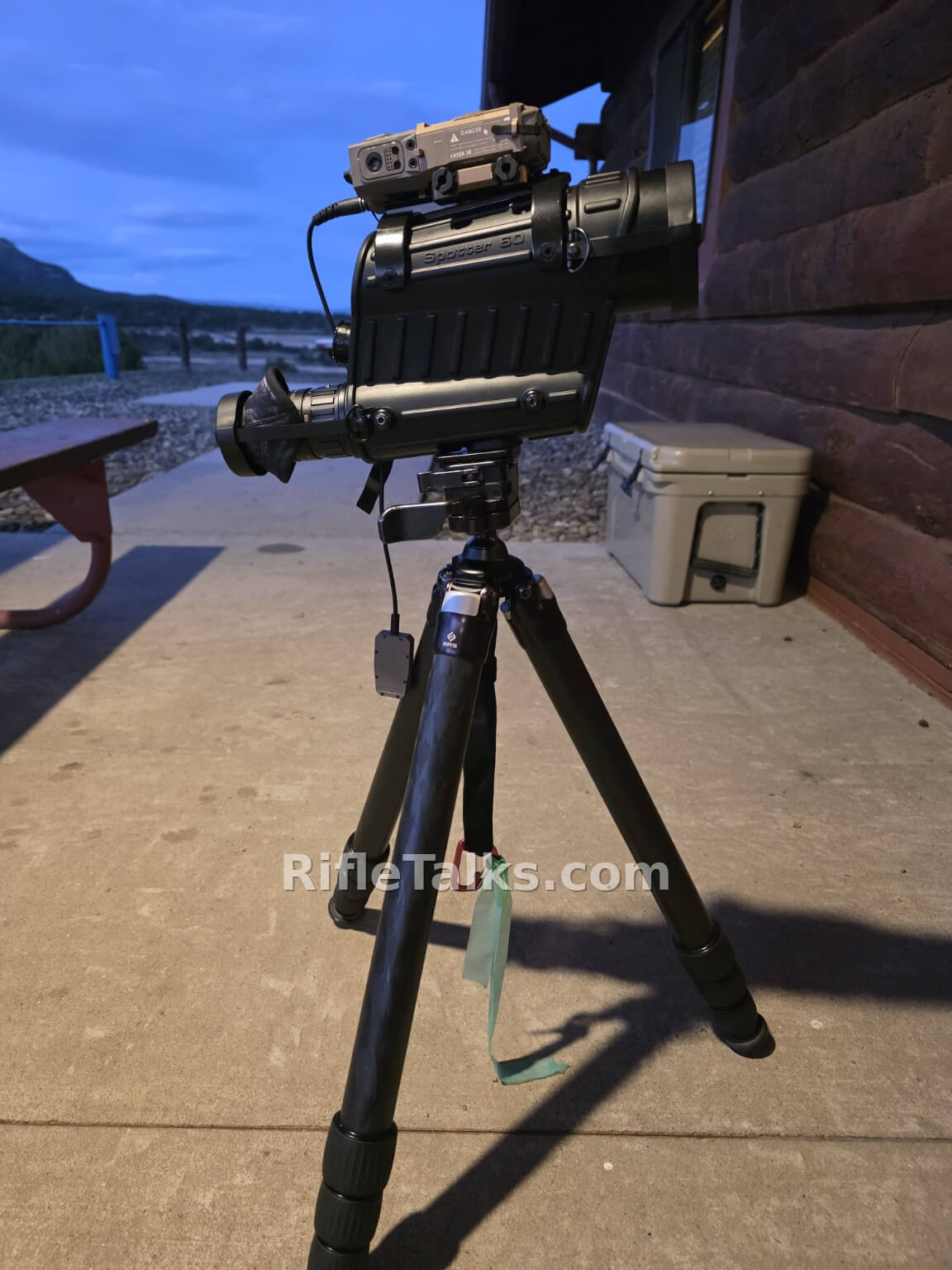

But specifications only tell part of the story. What caught my attention was having this amount of ranging capability sitting directly on top of Rob’s Hensoldt Spotter 60. Instead of looking like another large optical instrument, the Maztech becomes part of the observation system.

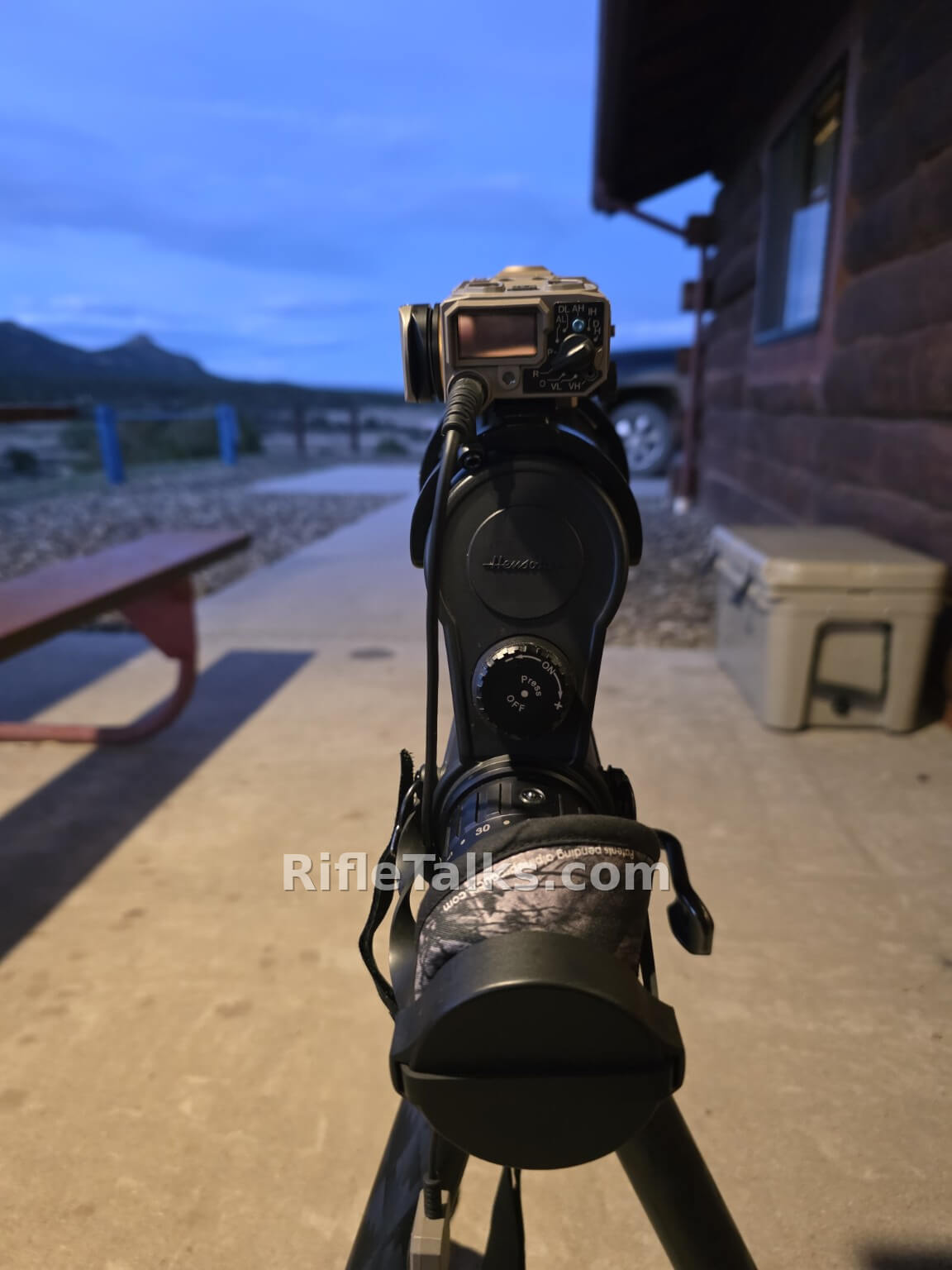

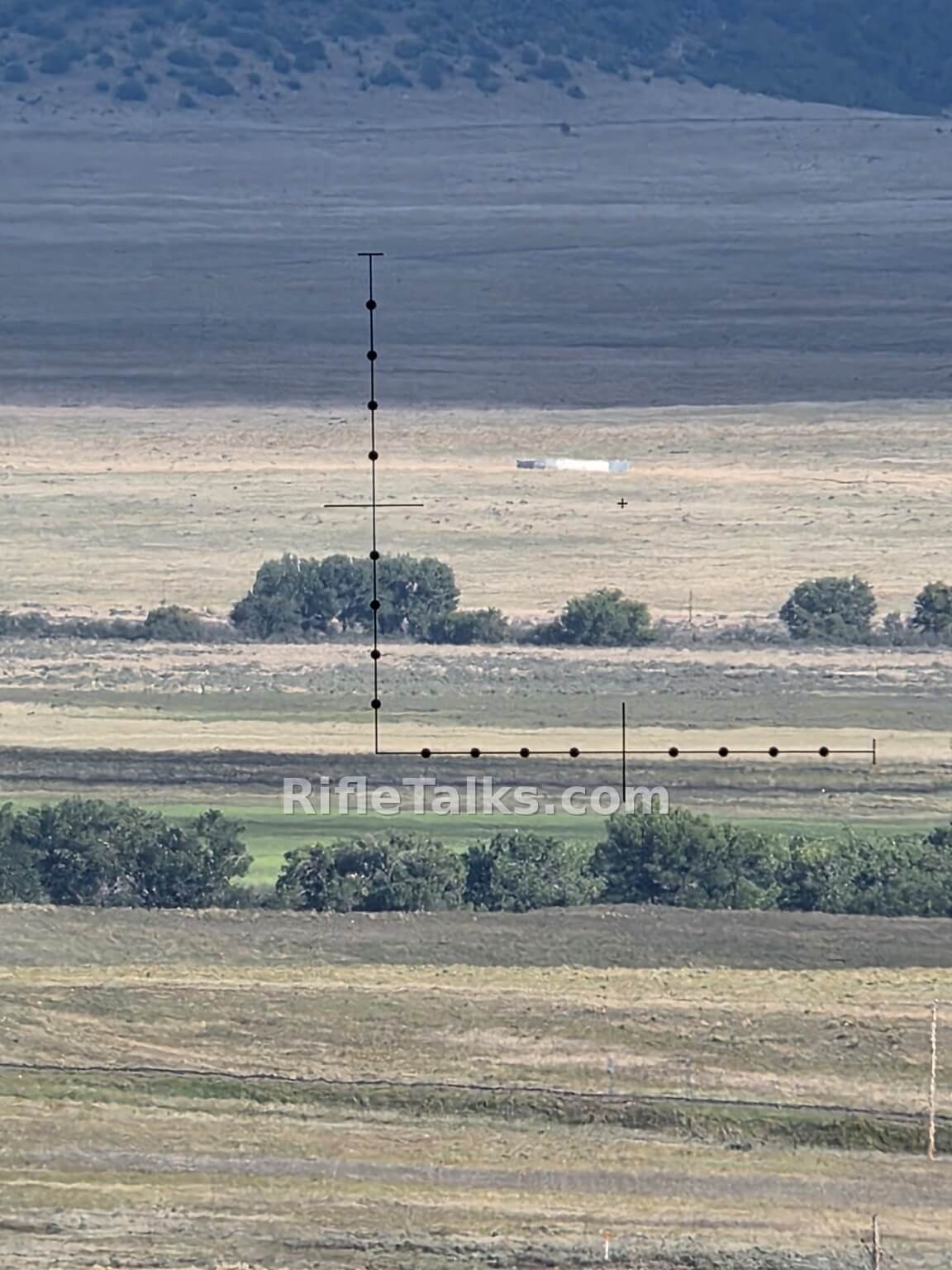

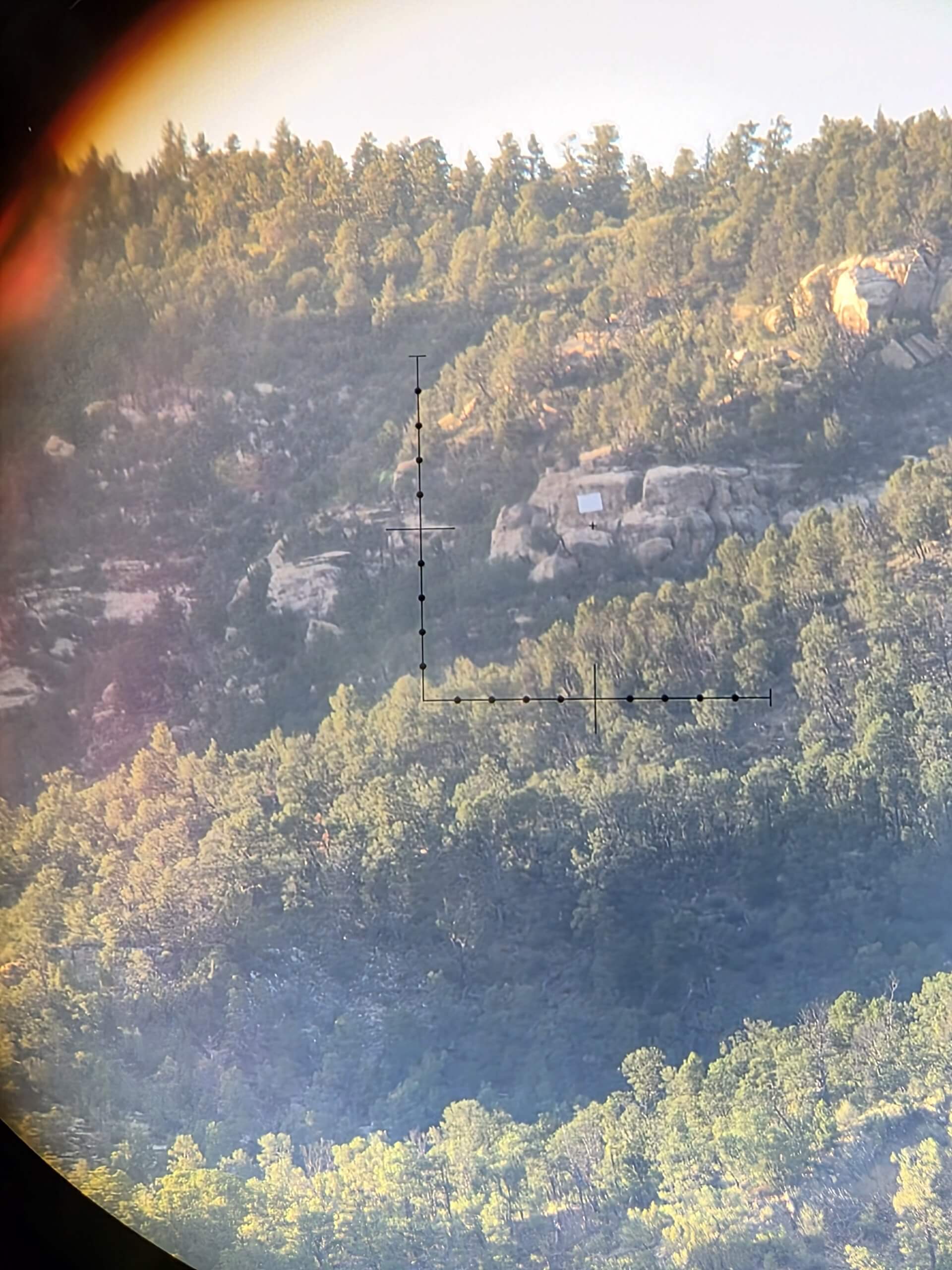

While many rangefinders depend on the magnification of the unit for target identification and accurate placement of the aiming beam, the Maztech uses the magnification of my spotting scope — in this case a 20–60x spotting scope. Since the laser is zeroed to the reticle of my spotter, I know with confidence which target I am lasering because I can see it clearly and magnified, whereas other standalone rangefinders would normally be using 5x, 7x or 8x magnification. That’s a massive advantage. The downside is that the unit needs to be zeroed to a scope or spotting scope.

While using the system we were able to range 2MOA steel plates at 3,143 metres, as shown directly on the unit in our photograph. For ELR shooting, that immediately gets my attention.

Why exact range matters in ELR — the .510 Whisper

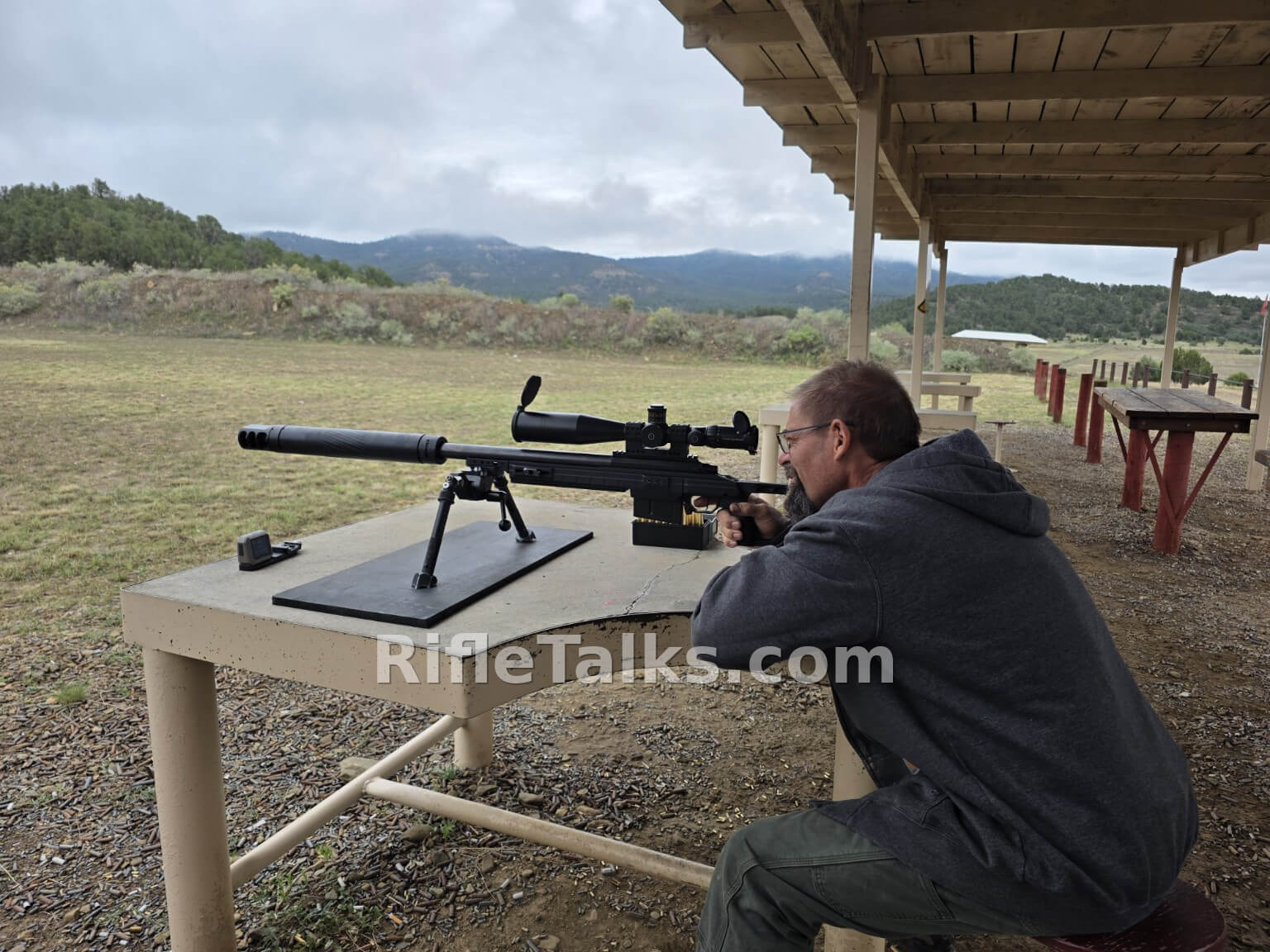

One of the most interesting rifles Rob gave us the opportunity to shoot was his .510 Whisper.

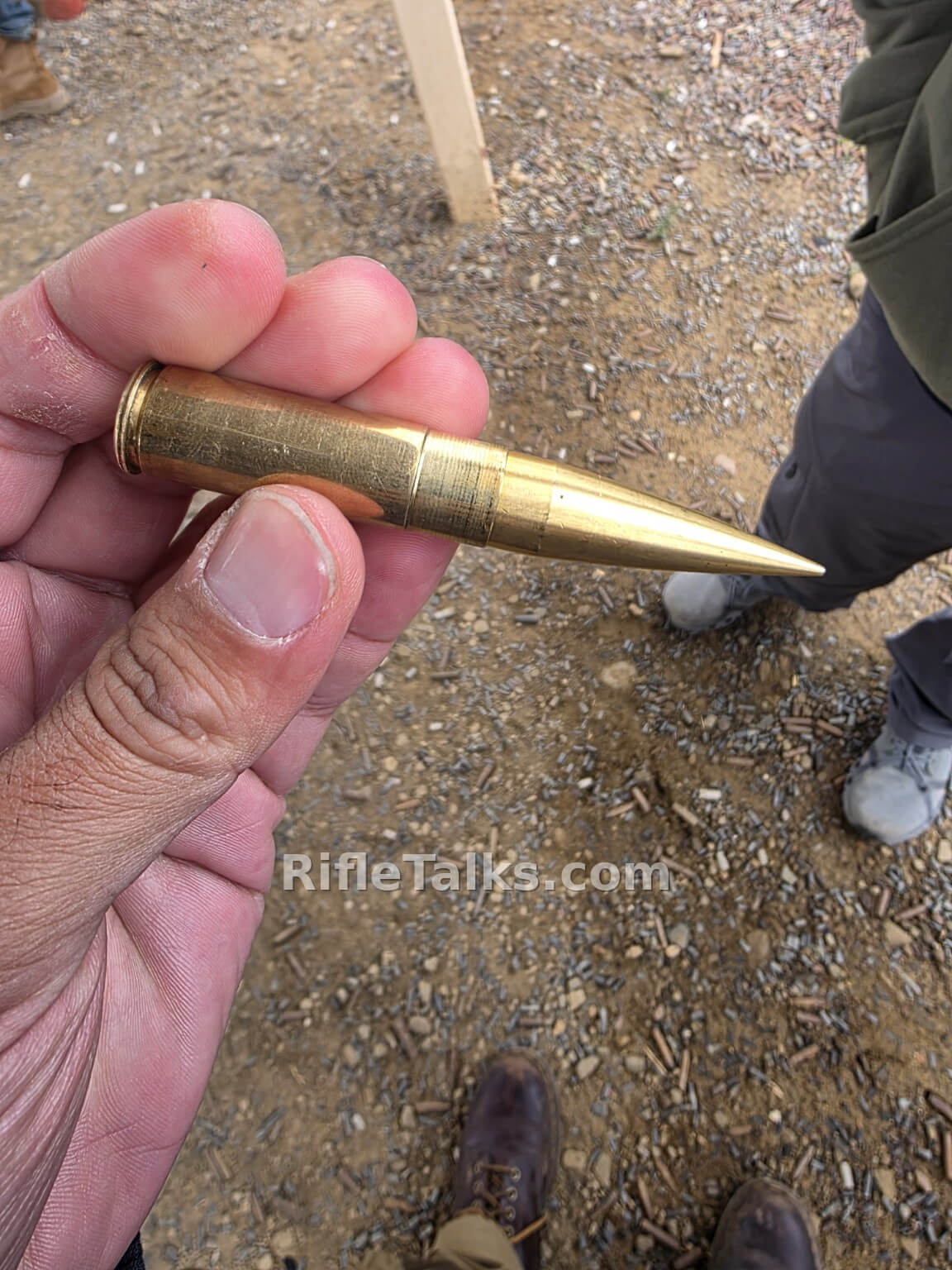

This is a large .50-calibre projectile travelling at subsonic velocity. The result is an extremely curved trajectory compared with the high-velocity ELR cartridges most long-range shooters are accustomed to. That makes knowing the actual distance to the target paramount.

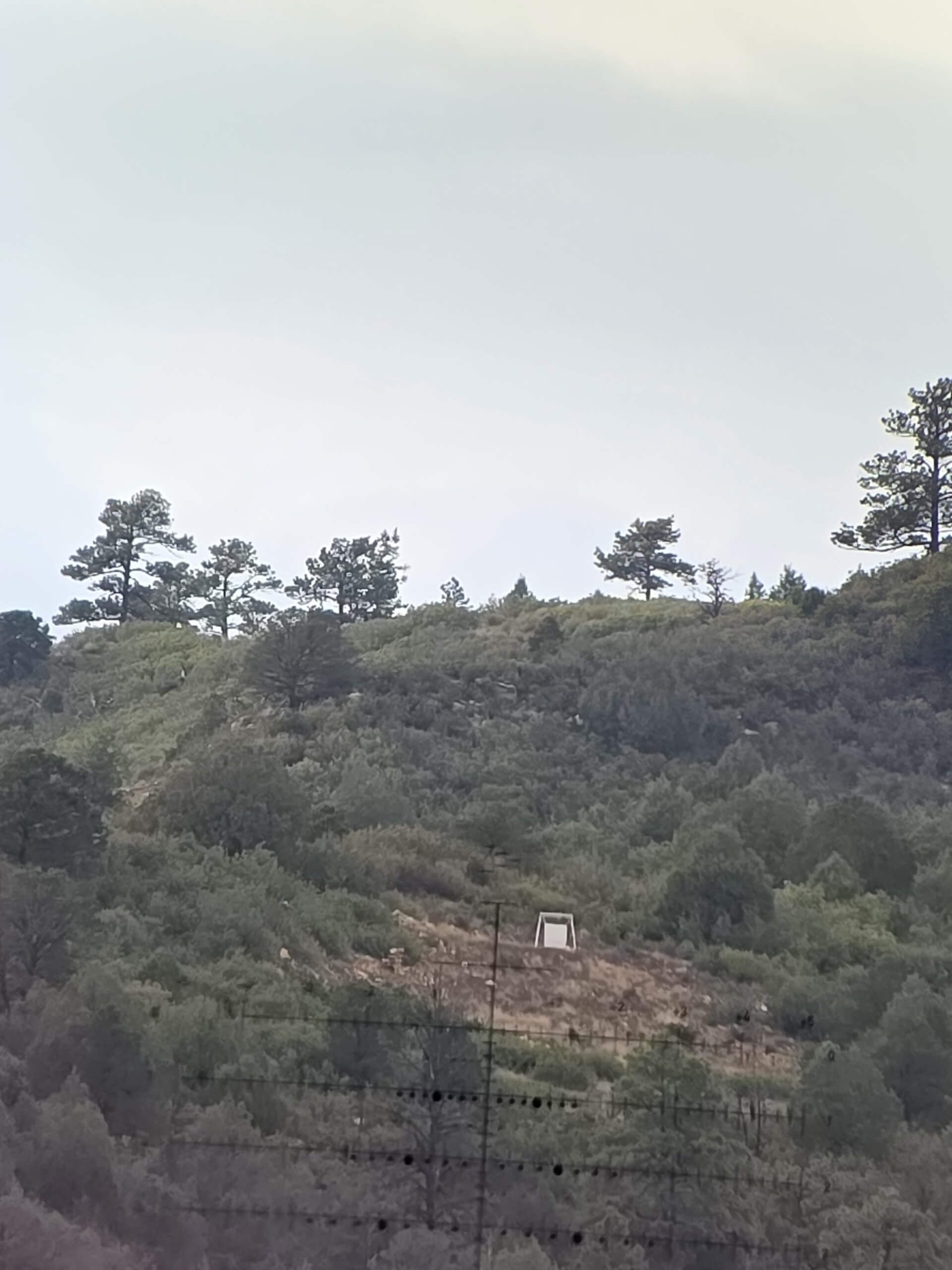

Below, the beautiful view of Spring Canyon during a visit with Jay Dvorsky, who kindly arranged a visit for me with Randy Powell from Thunder Ammo, a big name in .50 BMG competition. You can also read our interview with Randy Powell about .50 BMG ammo.

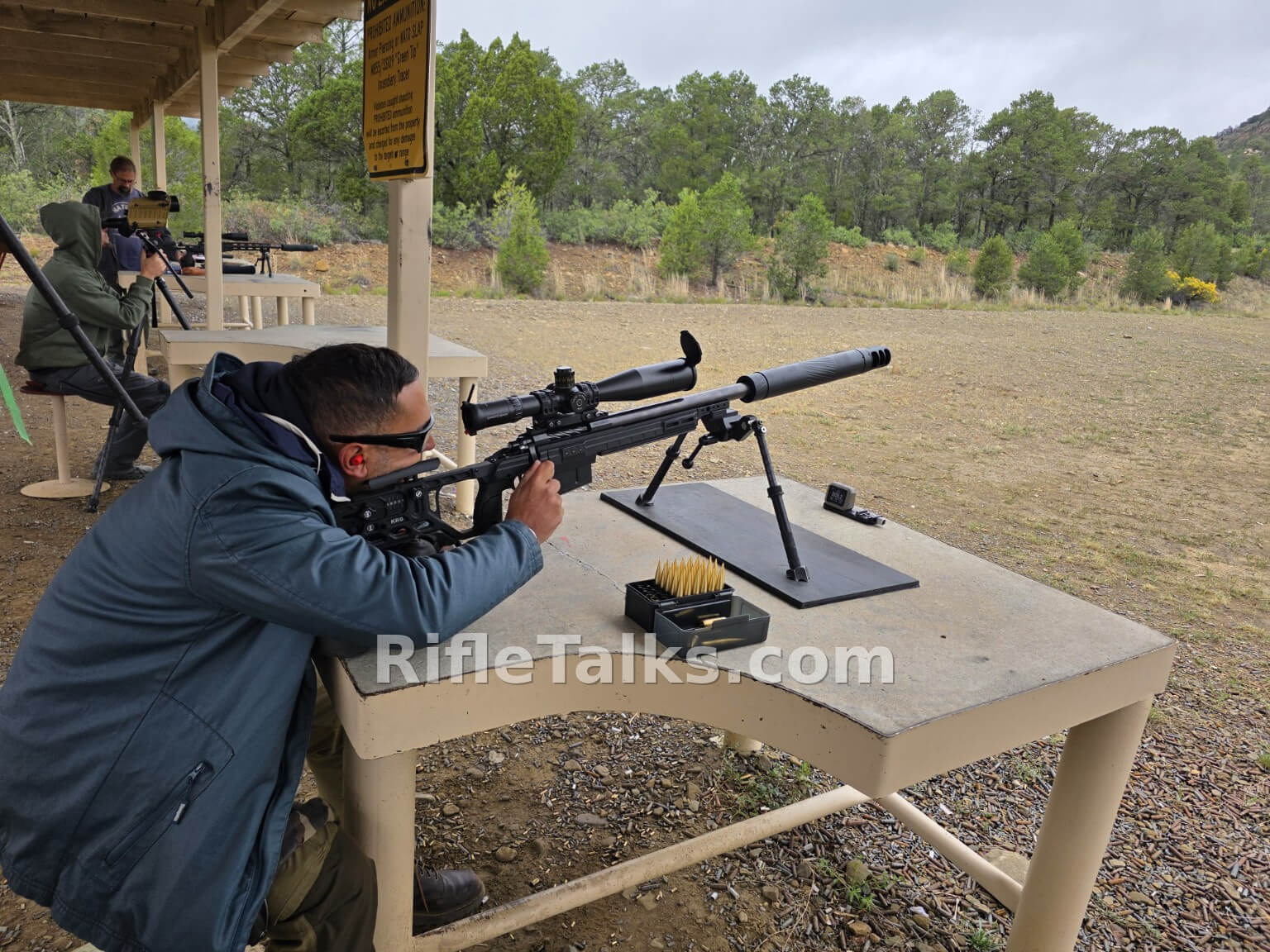

Rob’s rifle is built in a KRG chassis and fitted with a Thunder Beast Arms suppressor. He also explained to us how the cartridge cases for his rifle originated from Lapua .338 brass and were formed for the .510 Whisper.

What matters from the shooter’s perspective is the result: a huge projectile travelling below the speed of sound, with a trajectory where relatively small errors in target distance can translate into significant vertical errors downrange.

We shot the rifle at a 600-metre coyote target. Once the distance and solution were established, we were making impacts over and over again. At one stage we put roughly five rounds into approximately a five-inch group at 600 metres with Rob Goehring spotting for me as training for Ko2m, it was our first time shooting together.

For a subsonic .510 Whisper, watching those rounds repeatedly arrive on target was an experience I won’t forget and they hit with AUTHORITY!

And it demonstrated beautifully why accurate ranging matters.

Maztech rangefinding for ELR shooting beyond 4,000 yards

At the other extreme were the .416 and .50-calibre ELR rifles we were shooting around — systems built for distances measured in thousands rather than hundreds of metres.

These rifles can reach beyond 4,000 yards. The trajectory is completely different from the subsonic .510 Whisper, but one fundamental requirement hasn’t changed: you need to know where the target actually is, and as precisely as possible, to build an accurate first-round solution. Get the range wrong and the solution starts wrong.

At these distances, guessing that a target is “about” a certain distance away isn’t enough. A firing solution starts with accurate information, and distance is one of the most fundamental pieces of that information. For more of our first-hand ELR testing, see the RifleTalks .416 Barrett ELR rifle build and .50 BMG competition ammunition features.

My first impression of the Maztech X4-LRF-15K

I didn’t have the Maztech for months and I’m not going to pretend this was a laboratory test. It wasn’t.

I had the opportunity to use it in the field, range with it, photograph it and see how it integrates into a serious ELR observation setup when it mattered, on the eve of the Ko2M global finals which was a blast.

And my first impression was simple: this is an extremely interesting piece of kit.

A claimed 15 km maximum range grabs your attention, but for me the more relevant question is what happens at the distances ELR shooters actually work with. Seeing a 3,143-metre reading ourselves is considerably more meaningful than simply reproducing a specification from a brochure.

Combine that capability with Applied Ballistics and a compact unit sitting on top of a high-end spotting optic, and I can see why this concept will attract attention among ELR shooters.

From putting a subsonic .510 Whisper onto a coyote at 600 metres to working with rifles capable of reaching beyond 4,000 yards, the principle remains the same:

Know your distance. Build the solution. Make the impact. The Maztech X4-LRF-15K is the unit I’d pick next time. After travelling 13,000 miles from Europe to the US, I want to make sure I get my distances right. Maztech — check it out.

Maztech X4-LRF-15K FAQ

How far can the Maztech X4-LRF-15K range?

Maztech specifies a maximum ranging capability of 15,000 metres / 16,400 yards. During my own time with the unit at Raton, we ranged 2 MOA steel plates past 3,840 metres.

Does the Maztech X4-LRF-15K include Applied Ballistics?

Yes. The X4-LRF-15K integrates Applied Ballistics, and during my field use the unit displayed a ballistic solution alongside the range reading.

Is the Maztech X4-LRF-15K suitable for extreme long-range shooting?

That is where it made the strongest impression on me. I used it around ELR rifles working at 4,000-plus yards, where an accurate range is fundamental to building the firing solution.

— Rod Formosa, RifleTalks
